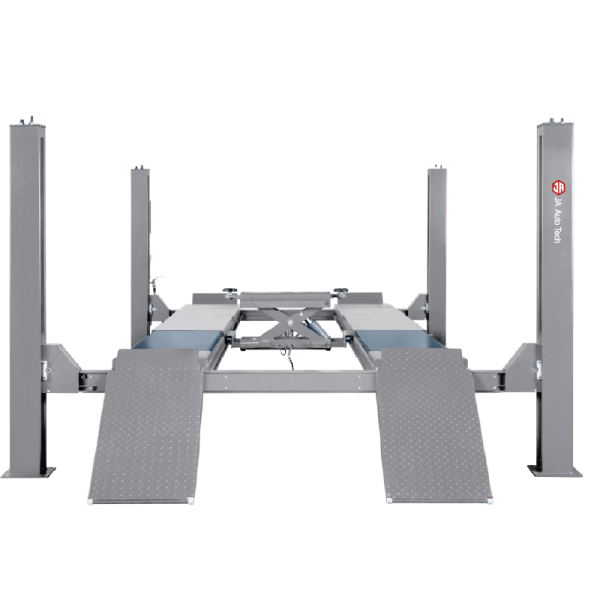

JA-FS55 4 Post Lift with Sliding Jacks Combo for Wheel Alignment
5500kg Capacity / High Lift / Extended Length / Includes Jack Platform and Drip Trays
The JA-FS55 four post lift is designed to go higher to accommodate parking for taller vehicles, such as SUVs and pickup trucks, under the elevated ramp. The JA-FS55 4 post lift offers a competitively priced above ground auto lift that offers more features and benefits than the ever-increasing number of “economy” auto lifts sold by no-name Internet marketers. Includes a Heavy Duty Steel Jack Tray, Plastic Drip Trays, Rubber Wheel Chocks, and Steel Wheel Stops.
Product Description
The JA-FS55 four post lift is designed to go higher to accommodate parking for taller vehicles, such as SUVs and pickup trucks, under the elevated ramp. The JA-FS55 4 post lift offers a competitively priced above ground auto lift that offers more features and benefits than the ever-increasing number of “economy” auto lifts sold by no-name Internet marketers. Includes a Heavy Duty Steel Jack Tray, Plastic Drip Trays, Rubber Wheel Chocks, and Steel Wheel Stops.
The Hydraulic Sliding jack is designed for use on hobbyist lifts with no welded slide on runways. Glide blocks under extension ears allow the jack to be positioned under the correct lifting point of the vehicle. Includes truck adapters.
Features:
1. Big Pulley for steel rope
2. Height limit switch
3. Safety valve for anti-explosion of hydraulic system
4. Abrasion resistant slip plates for 4 wheel alignment
5. Equipped with main insurance and rope break insurance on each column
Additional Information
| Power supply | 220V 1ph 50Hz 2.2kW |
|---|---|
| Noise level | ≤70dB |
| Platform length | 5190mm |
| Machine length | 6190mm |
| Machine width | 3340mm |
| Lifting capacity | 5500kg |
| Lifting height | 1750mm |
| Min. height | 225/250mm |
| Lifting time | ≤45/55s |
| Lowering time | ≤45/55s |
