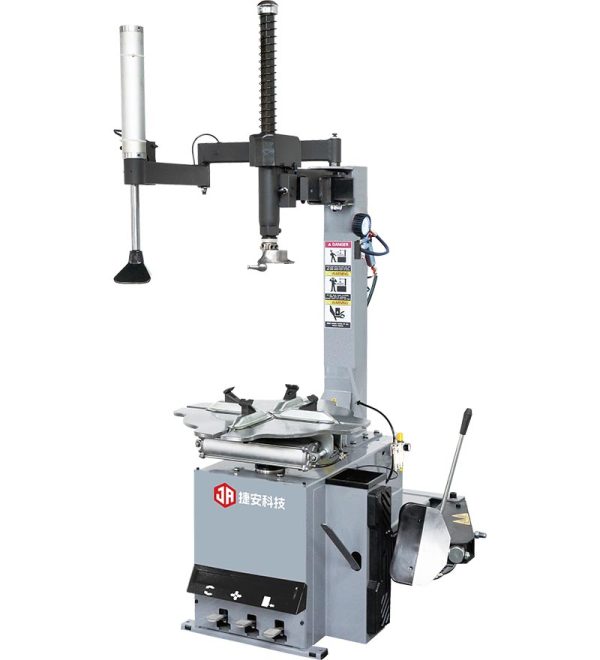

JA-C04 Swing Arm Tire Changer
Tire Changer / Help Arm / Swing Arm / 26″ Capacity
JA-C04 Swing Arm Tire Changer
JA-C04 swing-arm tire changer is equipped with a useful power-assist tower that tackles the challenges found when replacing lower-profile performance tires with stiffer sidewalls. And with its non-tilt back design, it can be installed flush against walls. The swing arm on the JA-C04 is one of this tire changer’s most useful features. The swing-arm design lets you load tires fast, and the steel clamps are perfect for passenger cars, daily commuters, spares, and many trailer tires.
Product Description
JA-C04 swing-arm tire changer is equipped with a useful power-assist tower that tackles the challenges found when replacing lower-profile performance tires with stiffer sidewalls. And with its non-tilt back design, it can be installed flush against walls. The swing arm on the JA-C04 is one of this tire changer’s most useful features. The swing-arm design lets you load tires fast, and the steel clamps are perfect for passenger cars, daily commuters, spares, and many trailer tires.
Features
- Swing Arm Design
- Manual operation of mount/demount tool
- Four pneumatic clamps and double-acting cylinders
- Side-mounted bead breaker
- Handles tires to 38″ diameter and rim widths to 14″
- Bead seating inflation jets are integrated into the clamping jaws ensuring quick and safe inflation
- Twin clamping cylinders provide more power to hold the most difficult rims
- Conveniently located and powerful bead breaker
- No scratching. The machine never contacts the rim eliminating accidental damage
- Large diameter hex mount / demount shaft for extra rigidity
- The higher position installed helps arms design allowing more flexible operation. Available to lock the arm at any position that needs
The JA-C04 Wheel Clamp Tire Changer is the newest member of the JA tire changer family and builds on its legacy of durability, reliability, and upgradability. The JA-C04 is an extension of the JA swing arm tire changer you have always known and trusted with new features such as a robust center lock mechanism with only two moving parts, a rugged 380V/220V/110V, and completely redesigned convenience features. These operator-focused features all come together to give you the best tire changer platform in the business. Operate your shop with confidence, and the speed you expect from a swing arm tire changer, but with the added peace of mind of a center clamp.
Additional Information
| Rim Clamp From Outside | 12"- 23" |
|---|---|
| Rim Clamp From Inside | 14"-26" |
| Max Tyre Diameter | 980mm |
| Max Tyre Width | 14" |
| Working Pressure | 8-10bar |
| Voltage | 380V/220V/110V |
| Motor Power | 0.75KW/1.1KW |
| Packing Dimensions | 1080X890X870mm |
| Net weight/Gross weight | 228KG/257KG |
