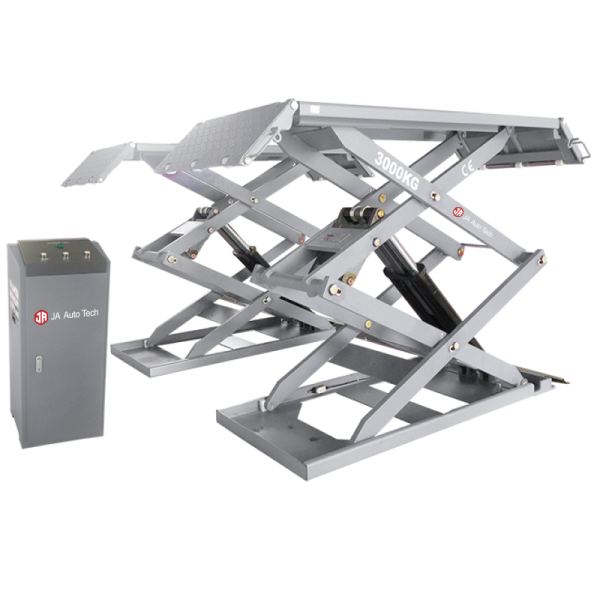

3.0 T Capacity JA-UT30Y Ultra-Thin Wheel Free Scissor Lift
On-Ground Surface Mount or In-Ground Flush Mount Low Profile Full Rise Scissor Lift, 3000kg, 220V/380V, Pneumatic Release
JA-UT30Y double scissors lifts are the ideal lifts for most passenger vehicles, ranging from compact cars up to light-duty trucks. These car scissor lifts are innovatively built for safety and versatility. When compared to the traditional two-post design, they allow you to lift vehicles faster and more efficiently while also taking up less shop floor space. The lifting capacity for this lift is 3000kg capacity.
Product Description
JA-UT30Y double scissors lifts are the ideal lifts for most passenger vehicles, ranging from compact cars up to light-duty trucks. These car scissor lifts are innovatively built for safety and versatility. When compared to the traditional two-post design, they allow you to lift vehicles faster and more efficiently while also taking up less shop floor space. The lifting capacity for this lift is 3000kg capacity.
Features:
1. Precision machined safety lock
2. Synchronized hydraulic cylinders system
3. Safety descending stop & alarm
4. Safety valve for anti-explosion of hydraulic system
5. Height limit switch
6. 4 rubber pads
7. Allows to fix the ramp as an extendable platform, suits for long wheelbase vehicles
Additional Information
| Lifting capacity | 3.0Ton |
|---|---|
| Platform length | 1450-2050mm |
| Platform width | 660mm |
| Machine length | 2020mm |
| Power supply | 220V 1ph 50Hz 2.2kW, 380V 3ph 50Hz 2.2kW |
| Lifting height | 1850mm |
| Min. height | 105mm |
| Lifting time | ≤55s |
| Lowering time | ≤55s |
